After it debuted last week to mixed reviews, Apple’s all new 12-inch MacBook was dissected by a Chinese owner on Tuesday, who subsequently posted images of the teardown online.
Photos of what appears to be a fairly comprehensive disassembly process were posted to Chinese website Feng.com, with user “lilin7591″ chronicling everything from OS X setup to close-up shots of individual components.

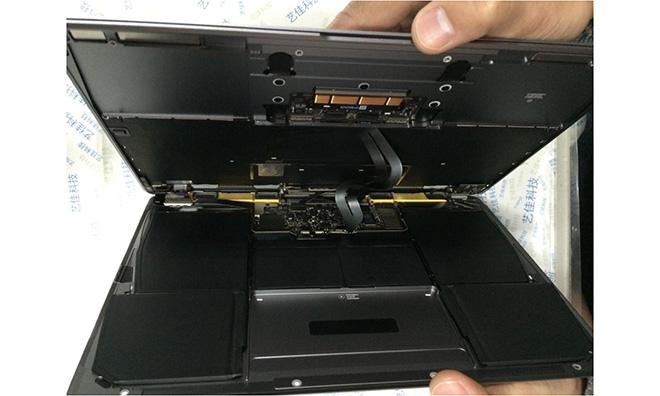

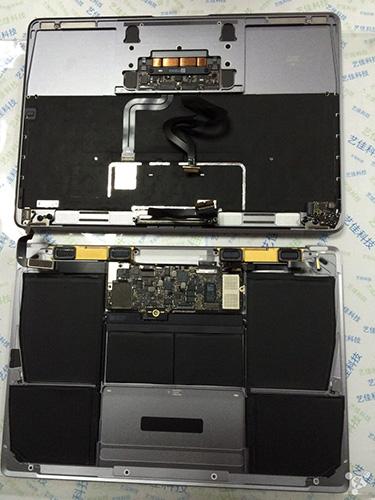

As seen in the images above and below, Apple didn’t have much space to work with in the new MacBook’s ultra-slim chassis. Due to physical constraints, Apple moves away from previous unibody designs, instead shoehorning the logic board on the bottom cover between a huge array of terraced battery cells. Virtually every nook and cranny is stuffed with a component, battery or cable.
Without fans there are few moving parts in Apple’s MacBook. The keyboard, redesigned with butterfly switches to achieve maximum thinness, can be considered MacBook’s single largest part. Situated just beneath is Apple’s new Force Touch trackpad, which sports a haptic feedback motor to simulate clicks.

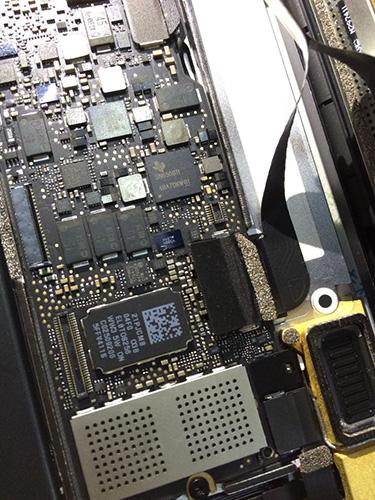

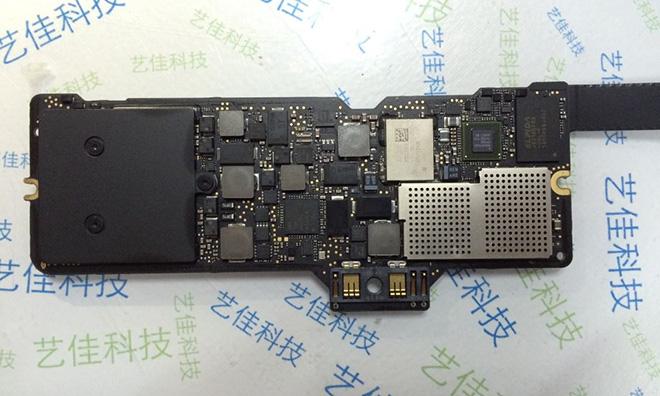

Impressively, Apple was able to shrink down the MacBook’s logic board to a size nearly as small as the Force Touch trackpad. Looking closely at individual components, it appears Apple went with parts from the usual players including Elpida, Toshiba, Texas Instruments and others.

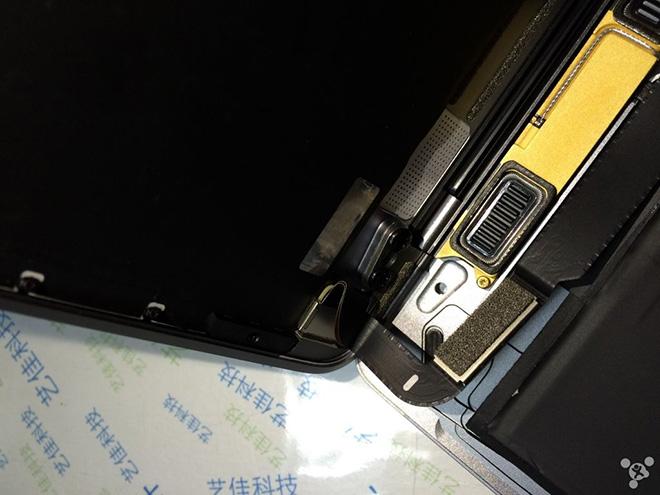

Other odds and ends include small upward-firing speakers attached to wireless antennas, an all-metal display hinge with integrated clutch, a tiny headphone module, connectors, ribbon cables and more.
With such radical internal changes — and the concessions made to get there — it’s clear that the new MacBook is Apple’s next step toward “reinventing” the laptop.
